extraction by printing press
Pipelines system which releases the air to the atmosphere or to
the general extraction facility.
Bypass activated by a piston pump.
Transport of VOC’s coming
from booths to a gas burner
Made of galvanized Steel.
General pipelines ø900 mm.
Release to the atmosphere by pneumatic bypass.

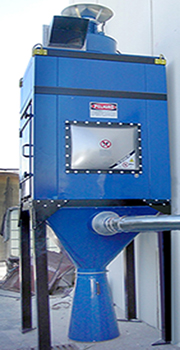

Pigment dust extraction and filtration
Compressed air cleaning system
Total volume processed 5.000 m3/h.
Centrifugal Fan of 5,5 kW.
